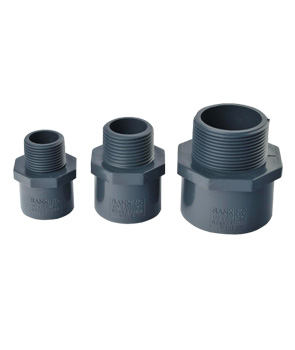

外牙 (SxT)
優(yōu)點：
描述：
描述：

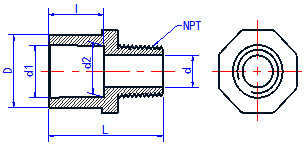

產(chǎn)品規(guī)格（單位: MM）
| 公稱尺寸 | 外徑 | 承插口類型 | 承插口尺寸 | ||||
| D | d1 | d2 | I | d | L | NPT/inch | |
| 1/2' | 30.0 | 21.54 | 21.23 | 24.00 | 13.20 | 50.00 | 14.00 |
| 3/4' | 35.0 | 26.87 | 26.57 | 27.00 | 19.00 | 50.50 | 14.00 |
| 1' | 44.0 | 33.65 | 33.27 | 30.00 | 24.00 | 59.00 | 11.50 |
| 1¼' | 54.0 | 42.42 | 42.04 | 34.00 | 32.00 | 63.40 | 11.50 |
| 1½' | 60.0 | 48.56 | 48.11 | 37.00 | 38.00 | 67.00 | 11.50 |
| 2' | 73.0 | 60.63 | 60.17 | 41.10 | 50.00 | 73.00 | 11.50 |
